Showers & Tub Surrounds
10 Different Size STANDARD Shower Bases available in all colors
60 x 36 center drain
60 x 32 Left Hand drain
60 x 32 Right Hand drain
54 x 36 center drain
48 x 36 center drain
42 x 36 center drain
36 x 36 center drain
NEO ANGLE STANDARD BASES
42 x 42 neo angle

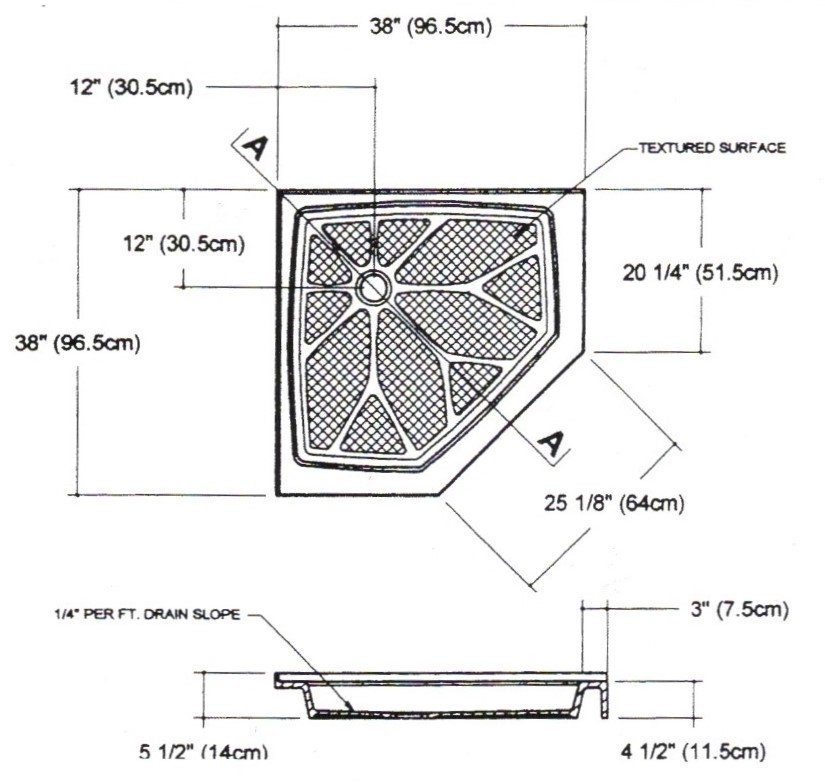

38 x 38 neo angle
36 x 36 neo angle
CUSTOM SHOWER BASE INFORMATION
Americast can manufacture your shower base to your specifications.

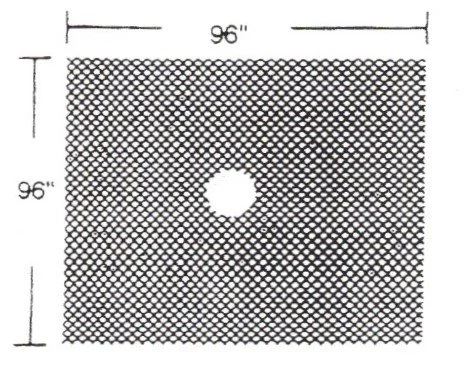

The largest size available is 96" x 96” with center drain or 82” x 48” with an end drain.
Each shower base is manufactured per customer specifications.
Our custom shower base has a non-slip surface and includes a water barrier flange & threshold mounted to the base.
Custom size threshold also available.
Standard thresholds are 4” x 4”, we also can do low profiles, L shaped thresholds, Access Ramps, or Zero threshold.
PANELS
We make a few different styles of panels all 3/8” thick, available in all colors and also custom sizes.

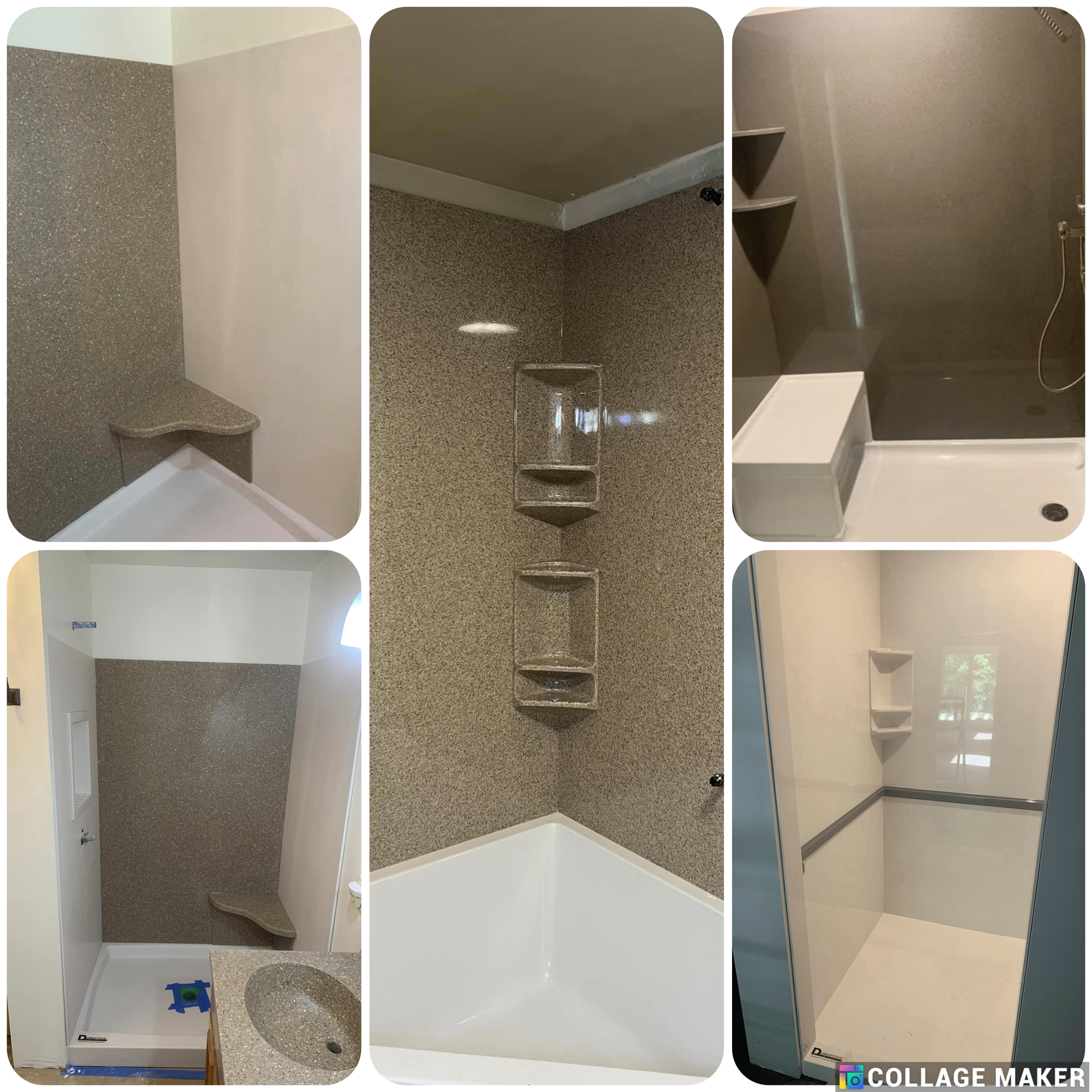

Flat Panels
(2 finished ends, 1 long, 1 short. Additional finishes w/added cost) Matte or Gloss
Maximum Size: 73” x 84” or 60” by 96”
3”x 6” Subway panels & 4 1/4” x 10 1/2” Breeze Tile panels
(2 finished ends, 1 long, 1 short. Additional finishes w/added cost)GLOSS ONLY
Maximum Size: 73 1/2” x 97”
3” x 6” Subway Tile
3” x 6” Subway Tile
3” x 6” Subway Tile
4 1/4” x 10 1/2” Breeze Tile
**Panels may require cut/trim at time of installation, to fit out-of-square walls
FLAT STOCK
3/4” thick material great for Decks, Window Sills and much more! Available in all colors (1 long and 2 short finished ends. Additional finishes w/added cost)
SHOWER ACCESSORIES
Extra Large Soap & Shampoo 17” x 19 1/2”
Regular Soap & Shampoo 9 3/4” x 20 3/8”
Corner Soap & Shampoo 10 1/4” x 20”
Shampoo Caddy 17” x 19 3/8”
Small Soap Dish 8” x 6 5/8”

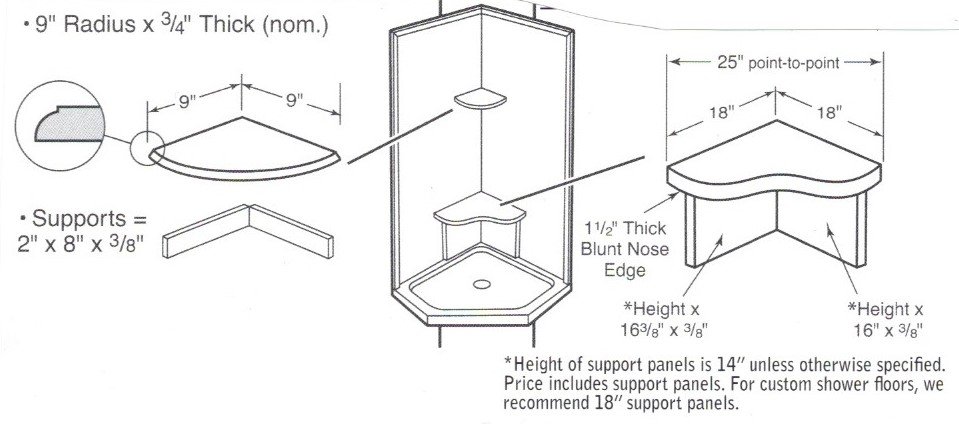

Corner Shelf 9” x 9” w/ or w/o supports 2- 8” x 2” (below on the left)
Corner Shower Seat 18” x 18” (25” point to point) with supports(14” unless otherwise specified, we recommend 18” for custom showers)(above on the right)
Access Ramp 8” x 72” x 1 1/2”
(custom sizes available)
TRIMS
Inside Corner Trim
Cap Trim
Edge Trim
